Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
  • Seal Lite 3D Scanner
Seal Lite 3D Scanner

Seal Lite 3D Scanner

$233.00 $359.00

Introducing Seal Lite


The Cost-Effective and Practical Choice with Precision-Blue Imaging System.

5x More Detail Per Unit

With its shorter wavelength (400 to 500 nano), it projects refined structured light, achieving 0.02mm accuracy.

0.02mm

Accuracy

Achieve exceptional 0.02mm accuracy for precise object reproduction.

0.07mm

Resolution

Experience impressive detail with a 0.07mm minimum point spacing.

Incredible Precision

Precision Blue imaging system delivers 0.02mm accuracy and up to 3x the resolution of comparable scanners. Get highly detailed models with ease.

Smooth Scan

Smooth scanning with Seal's advanced optical system and JMStudio algorithms.

Lightning-Fast Speed

Collecting 100,000 points per second, it swiftly scans body parts and more.

Brilliant in Darkness

9-level light adjustment for versatile scanning in varying colors, materials, and lighting conditions.

Light & Quiet

Take Seal Lite's 226g lightweight design with you wherever you need to scan! Experience smooth, quiet scanning with excellent heat dissipation and no fan noise.

Designed for Easy Scanning

Scan quality depends heavily on software, which is why our proprietary JMStudio is essential. Years of continuous iteration have resulted in enhanced scanning and editing capabilities. Support for 8 languages and lifetime free OTA updates.

Compatible Software

JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.

Intelligent Accessories

3D Scanning Redefined through Intelligence

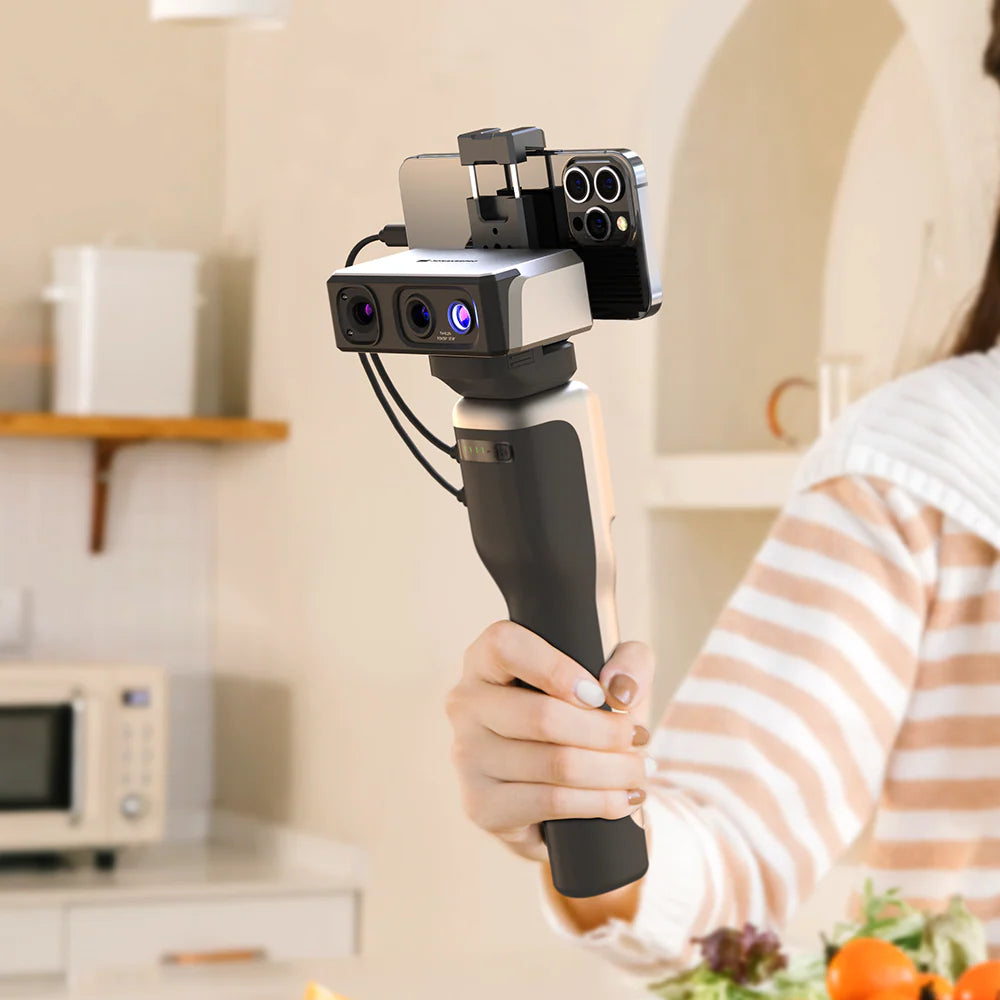

Smart Grip

Smart Grip connects Seal to your smartphone, enabling on-the-go scanning.

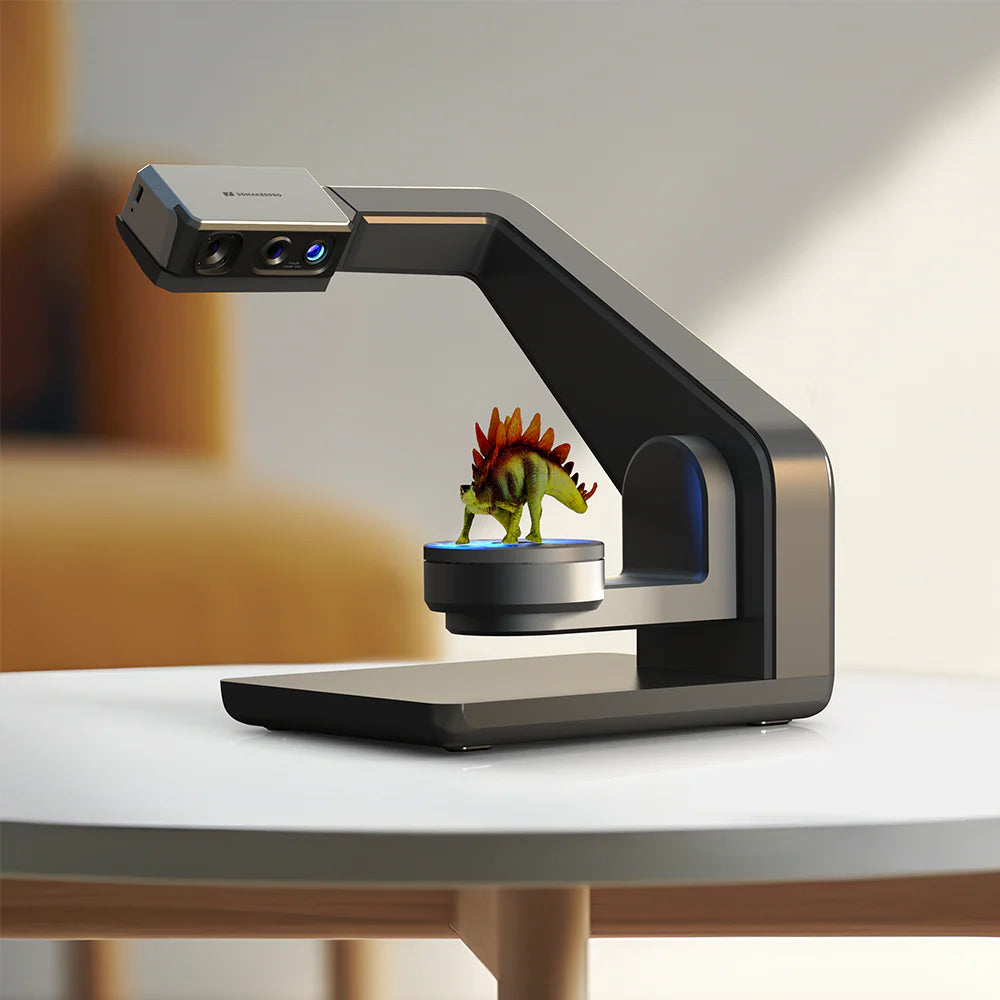

Multi-Axis Turntable

Easily scan objects with automation that lets beginners scan like a pro, and advanced customization with script editing for experts.


Scan Performance Parameters:

  • Accuracy: 0.02mm
  • Resolution: 0.07mm
  • Frame rate: 10fps
  • Tracking mode: Visual tracking
  • Work distance: 180-280mm
  • Single capture range: 100x75mm
  • Typical object sizes: 10-300mm
  • Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results.


Hardware Parameters:

  • Light source: Blue light
  • Color texture: Mono textures
  • USB interface: USB2.0
  • Dimensions: 110×60×35mm
  • Weight: 226g

Software System Requirements:

  • Output format: OBJ/STL/PLY/ASC
  • Compatible system: Windows10/11 64bit, MacOS12/13
  • Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
  • Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
  • Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM


Hardware Parameters:

  • Light source: Blue light
  • Color texture: Mono textures
  • USB interface: USB2.0
  • Dimensions: 110×60×35mm
  • Weight: 226g
