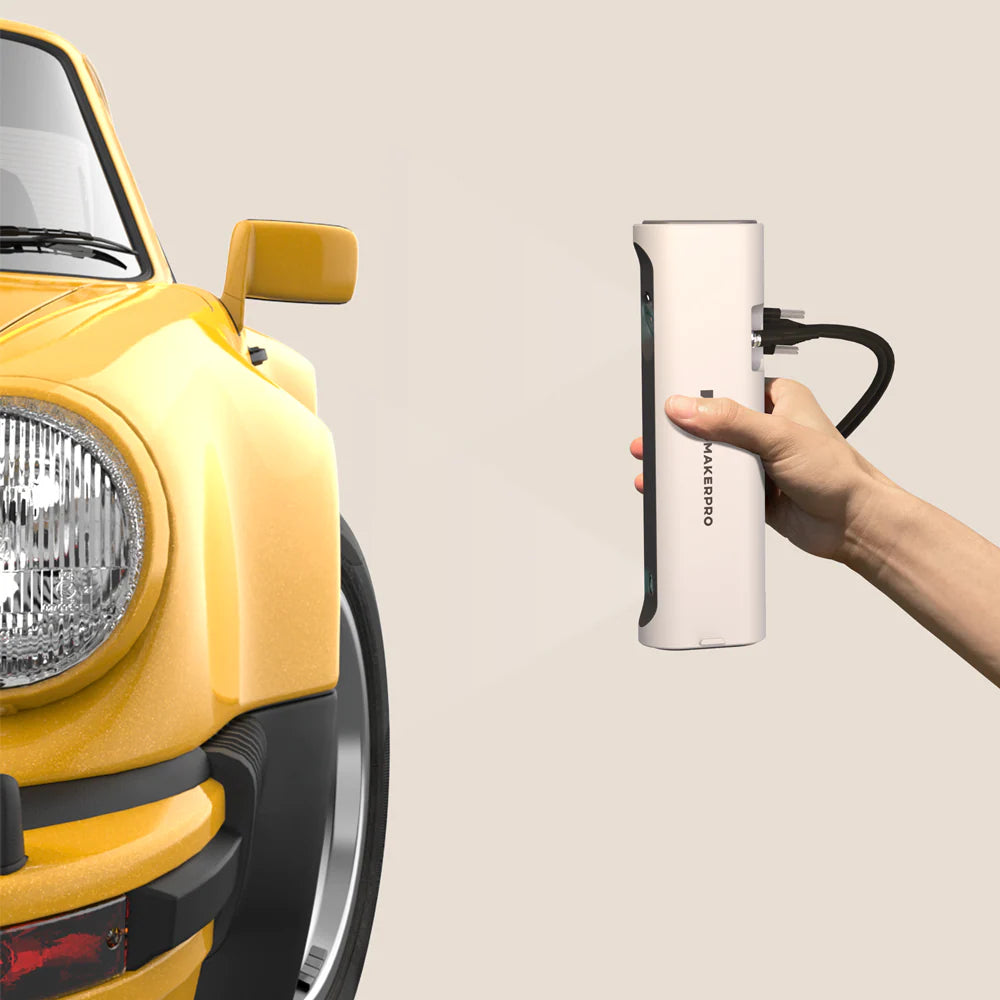

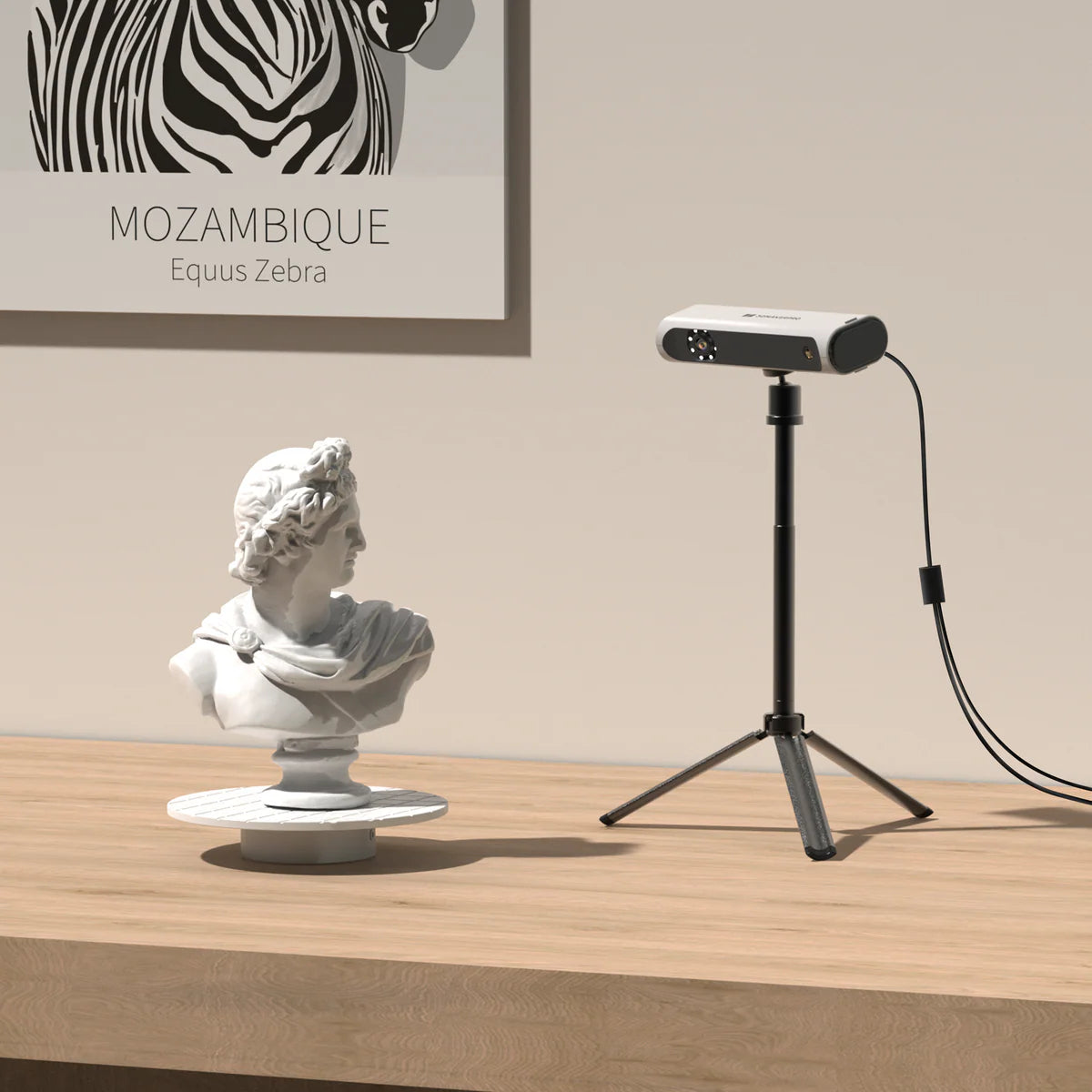

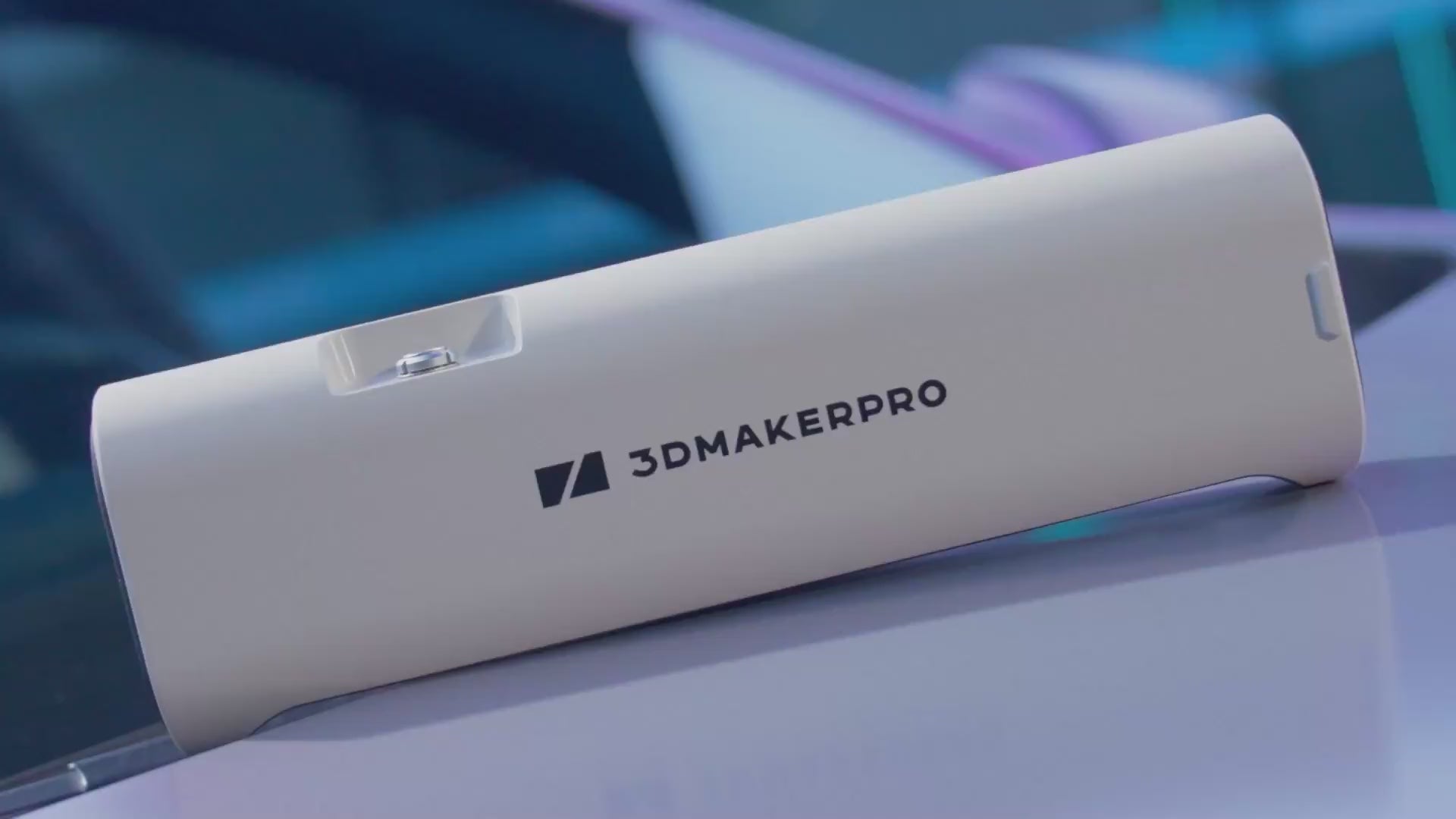

Lynx 3D Scanner

Scan Big, Pay Less, and Make It Easy

Capture Larger Objects

Lynx's Single Capture Range is 250×400mm, which is 200% larger than traditional mid-format scanners. With Lynx, you can scan objects up to 5000x5000x5000mm, a whopping 3700% improvement!

Smooth Scanning Experience

Lynx enables smooth scanning of large objects with an optical stabilizer and advanced visual tracking, minimizing the probability of misalignment without markers.

Faithful Object Reproduction

With 0.10mm accuracy and 0.30mm resolution, Lynx helps you create precise and detailed point clouds, achieving a high level of object reproduction suitable for art, design, and industrial purposes.

Creativity Unleashed in Every Scan

With Lynx, scanning medium to large objects such as human bodies, furniture, automotive parts, and sculptures is a breeze. In just minutes, you can capture complete and detailed models that showcase every intricacy.

Easy to Use

Software Designed for Scanning

JMStudio is a free scanning software exclusively for 3DMakerpro. It supports Windows, MacOS, as well as iOS and Android devices.
Tip: For connectivity with iOS and Android, the Connect accessory > is required

Smooth Scanning Experience

JMStudio offers a simple yet efficient scanning process, delivering excellent 3D scanning results even for first-time users.

Intelligent One-Click Editing

With integrated smart editing features, JMStudio automates the processing of your scanned projects with just one click, effortlessly producing satisfying 3D models.

Compatible Software

JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.

Specifications

Scan Performance Parameters:

• Accuracy: 0.10mm
• Resolution: 0.30mm
• Frame rate: 10fps
• Tracking mode: Visual tracking
• Work distance: 400-900mm
• Single capture range: 250 x 400mm
• Typical object sizes: 100-2000mm
• Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results.

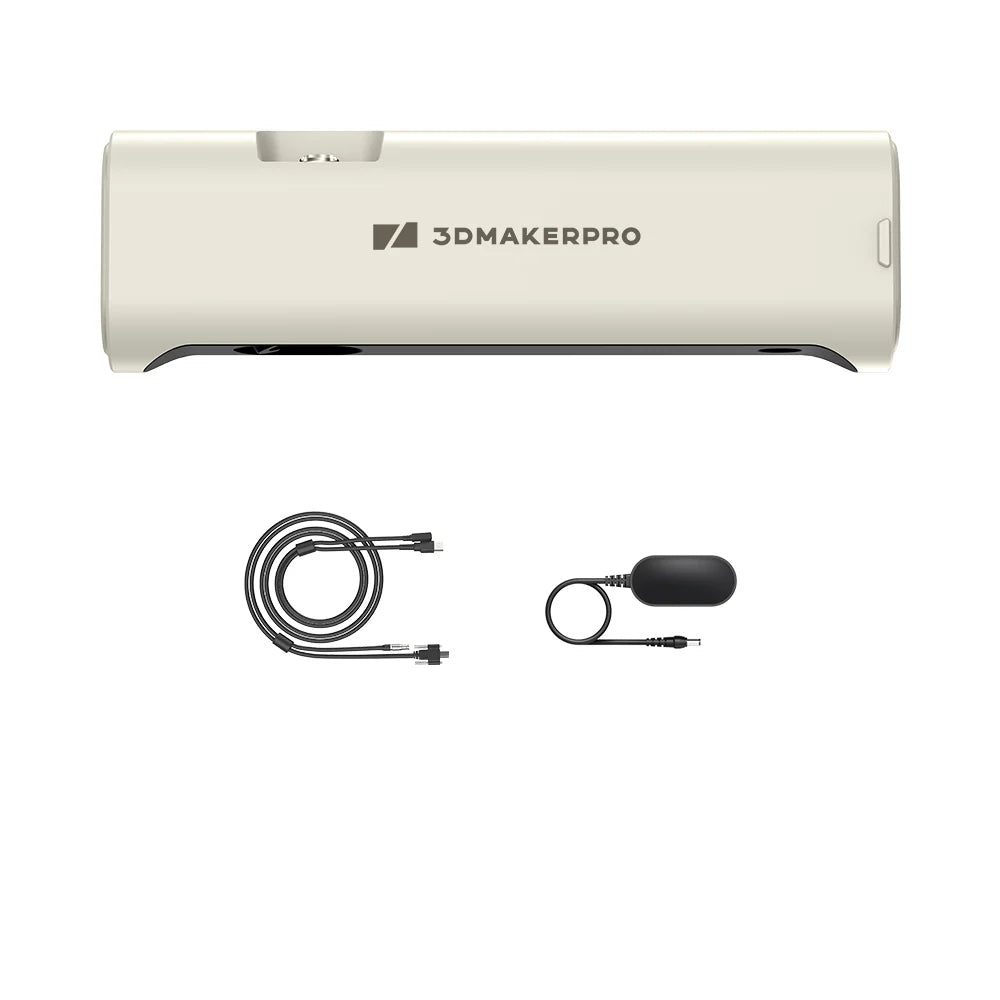

Hardware Parameters:

• Light source: NIR
• Color texture: Extended support
• USB interface: USB2.0
• Dimensions: 244x75x48mm
• Weight: 800g

Software System Requirements:

• Output format: OBJ/STL/ASC
• Compatible system: Windows10/11 64bit, MacOS12/13
• Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support)
• Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
• Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
